G401, G403, G405, G407 and G407F
STICK GRIPS
NEW! G407F (below)
The G407F stick grip features a PTT switch, a unique Four way switch and two Auxiliary pushbutton SPDT switches. The pushbutton switches can be replaced with four different style toggle switches (see bottom of page for details)....$169

G407F
The G4 Stick Grips feature a new switch module that is stylish with improved ergonomics. It utilizes the same comfortable foam grip as our G2 Series Grips. The G4 head is made of lightly textured nylon. G4 grips are 5.5” (140 mm) tall.

Installation is simple as all G4 grips come pre-wired with 3 feet (90 cm) of color coded, Teflon insulated, 24 gauge wire leads.

All G4 grips feature a momentary contact, 50 mA, SPST Push-To-Talk (PTT) switch located on the front side of the grip. The four push button switches on the G405 and G407 grip are the same switch. The G407F features a unique Four way switch to activate 2 axis trim. The Auxiliary pushbutton switches on the G403 and G407/F grips are rated at 1 amp.

NOTE: The G4 grips will need a REL-2 relay deck to control our servos.

All Ray Allen G4 Stick Grips are designed to fit 1" diameter control sticks. Two spacers are included with each grip enabling easy installation on 3/4” and 7/8” control sticks. G403, G405, G407 and G407F stick grips include a die cut label sheet (see bottom of page for details). The labels are lexan coated for long service life and fit in their own recesses for a professional appearance.




There are five G4 stick grip models available:



G405G407
G401 G403


G405

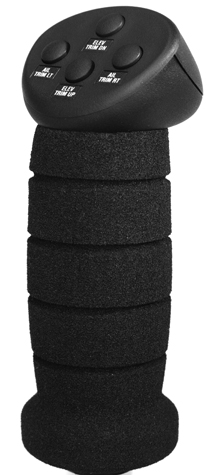

The G405 stick grip features a PTT switch, four SPST switches ....$149

G407
G401

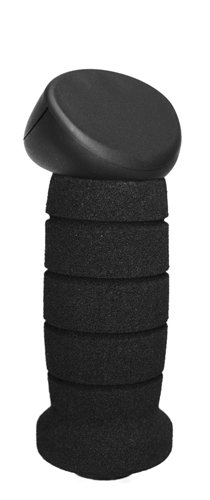

The G401 stick grip features a PTT switch....$59




G403
G401

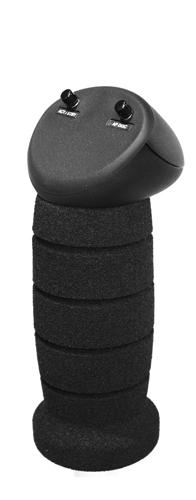

The G403 stick grip features a PTT switch and two Auxiliary pushbutton SPDT switches. The pushbutton switches can be replaced with four different style toggle switches (see bottom of page for details)....$119

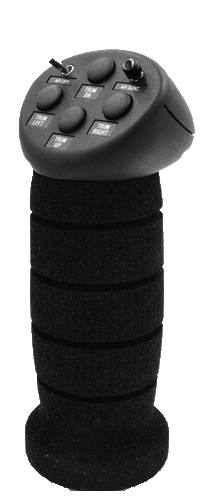

The G407 stick grip features a PTT switch, four SPST switches and two Auxiliary pushbutton SPDT switches. The pushbutton switches can be replaced with four different style toggle switches (see bottom of page for details, in this case the Top left switch = #2 Toggle switch)....$169.

.

Labels like this are included with each 403, G405 and G407 grip.


G407 Optional Switches


The pushbutton switch has a 2 amp @ 28 VDC rating.
The toggle type switches have a 5 amp @ 28 VDC rating.

Switch 1 = SPDT Pushbutton Switch, momentary contact
Switch 2 = SPDT Toggle Switch, On/Off
Switch 3 = SPDT Toggle Switch, On/Off/On
Switch 4 = SPDT Toggle Switch, momentary contact in one direction, On/Off/On
Switch 5 = SPDT Toggle Switch, momentary contact both directions, On/Off/On
